Board-to-Board Connectors for Compact PCB Interconnects
LinkManu supplies board-to-board connectors for compact PCB assemblies, mezzanine connections, vertical board stacking, side-entry mating, high-speed signal transfer and floating tolerance applications. Send your pitch, pin count, stack height, mating direction or existing part number for engineering review.
Core signal BTB pitch
Positions in selected 0.80 mm series
Stack-height range in selected series
Drawing, sample or part-number review
Find the Right Board-to-Board Connector by Specification
Board-to-board connector selection should start with real mechanical and electrical requirements. A reliable match depends on pitch, stack height, pin count, mating direction, signal speed, current path, tolerance and PCB assembly conditions.
Pitch & Density
Choose the pitch based on PCB space, signal density and assembly requirements. Current source data strongly supports 0.80 mm BTB families, with additional larger-pitch display connector options available from PPT materials.
Stack Height
Confirm the distance between two PCBs. Selected 0.80 mm series cover low-profile and taller mated-height options, including 5–10 mm and 5–25 mm stack-height ranges.
Mating Direction
Select vertical, side-entry, mezzanine or board-parallel structures according to the internal product layout, insertion direction and available mechanical space.
Signal, Power or Floating
Use standard signal BTB, high-speed signal BTB, power-signal hybrid or floating board-to-board connector options depending on electrical performance and assembly tolerance.
Board-to-Board Connector Series Available for Review
The following series summary is built from current Solepin and PPT source materials. Final selection should always be confirmed against the official drawing, footprint, mating connector, datasheet and application test conditions.
| Series / Type | Pitch | Positions | Stack Height | Mating / Structure | Best-Fit Applications |
|---|---|---|---|---|---|
| 66C1 Side-Entry Signal BTB | 0.80 mm | 10 / 20 / 30 / 40 / 50 / 60 / 70 / 80 / 100 / 120 pos | 5–10 mm | Side-entry mating, guided structure | Compact PCB layouts where side insertion is required |
| 66C2 Anti-Vibration Signal BTB | 0.80 mm | 10 / 20 / 30 / 40 / 50 / 60 / 70 / 80 / 100 / 120 pos | 5–25 mm | Vertical mating, anti-vibration structure, guided design | Industrial boards, LED display modules, compact PCB stacks |
| 66C3 Single-Slot Signal BTB | 0.80 mm | 10 / 20 / 30 / 40 / 50 / 60 / 70 / 80 / 100 / 120 / 140 / 160 / 180 / 200 pos | 5–10 mm | Vertical mating, guided design, source data lists PCIe 3.0 / 8 Gbps | High-density signal transfer and mezzanine PCB connection |
| 66C4 High-Speed Signal BTB | 0.80 mm | 10 / 20 / 30 / 40 / 50 / 60 / 70 / 80 / 100 / 120 pos | 7–25 mm | Vertical mating, source data lists PCIe 4.0 / 16 Gbps | High-speed internal PCB interconnects and equipment modules |
| 66C6 High-Speed Signal BTB | 0.80 mm | 40 / 80 / 120 / 160 / 200 pos | 5–25 mm | Vertical mating, high-speed signal structure | High-density high-speed board-to-board applications |
| 66C8 Floating BTB | 0.80 mm | 30 / 40 / 60 / 80 pos | 6 / 8 / 9.75 / 11.75 / 12.75 / 14.75 mm | Vertical mating, X/Y/Z floating tolerance listed as ±0.50 mm | PCB misalignment, vibration and assembly-tolerance applications |
Need a different pitch, pin count or stack height? Send your drawing, sample or target part number for review.
Representative Board-to-Board Connector Options
Product images are selected from Solepin board-to-board connector source pages and matched with the corresponding product family.

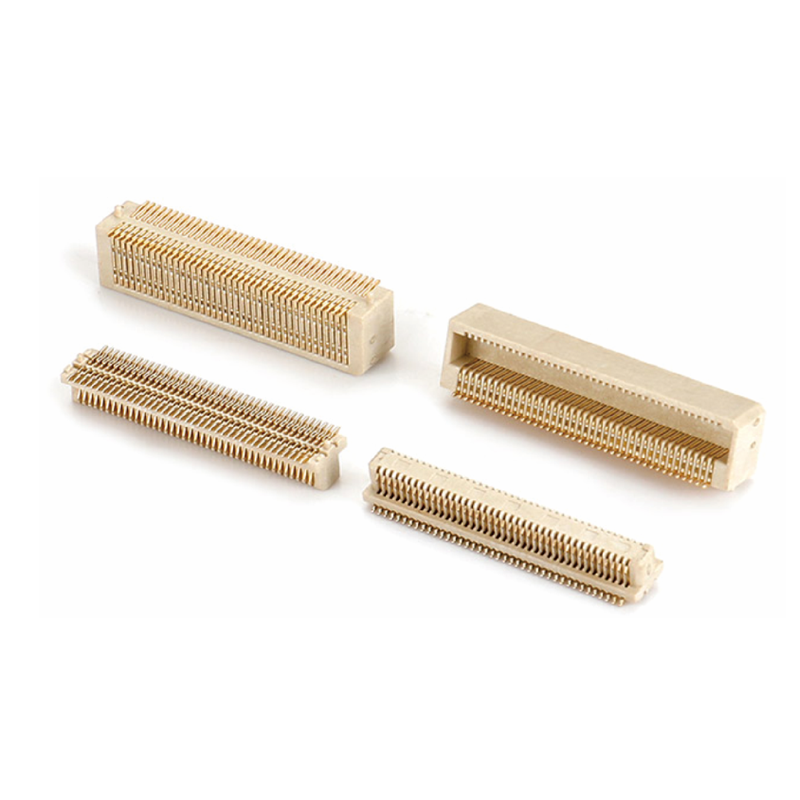

66C1 Side-Entry BTB
0.80 mm side-entry signal board-to-board connector for compact PCB layouts and horizontal mating conditions.

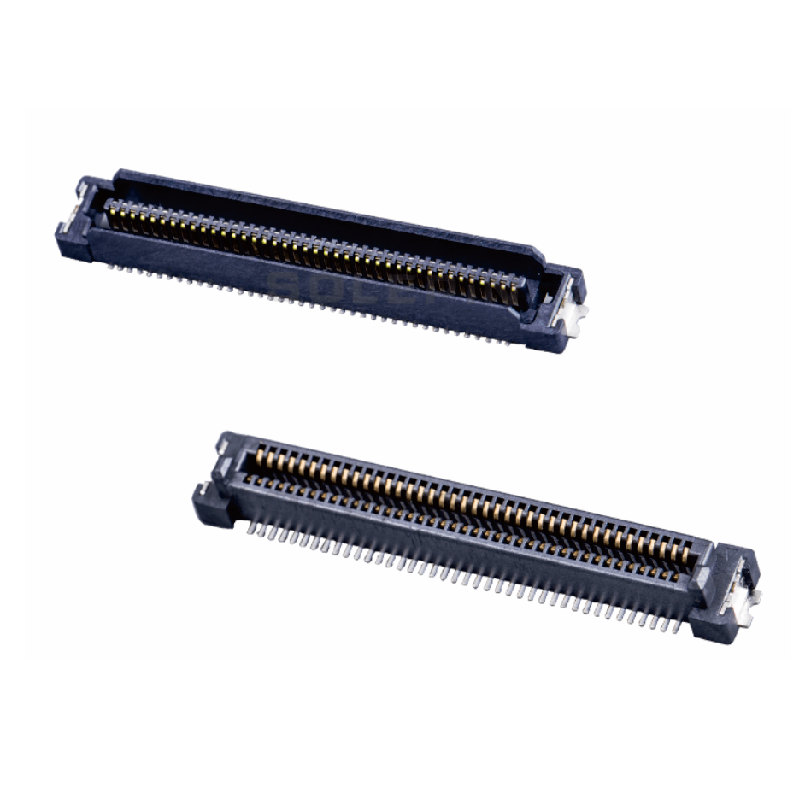

66C2 Anti-Vibration BTB
0.80 mm vertical signal BTB connector with 5–25 mm stack-height options and anti-vibration structure.
66C3 Signal BTB
0.80 mm vertical single-slot signal board-to-board connector with up to 200 positions in source data.

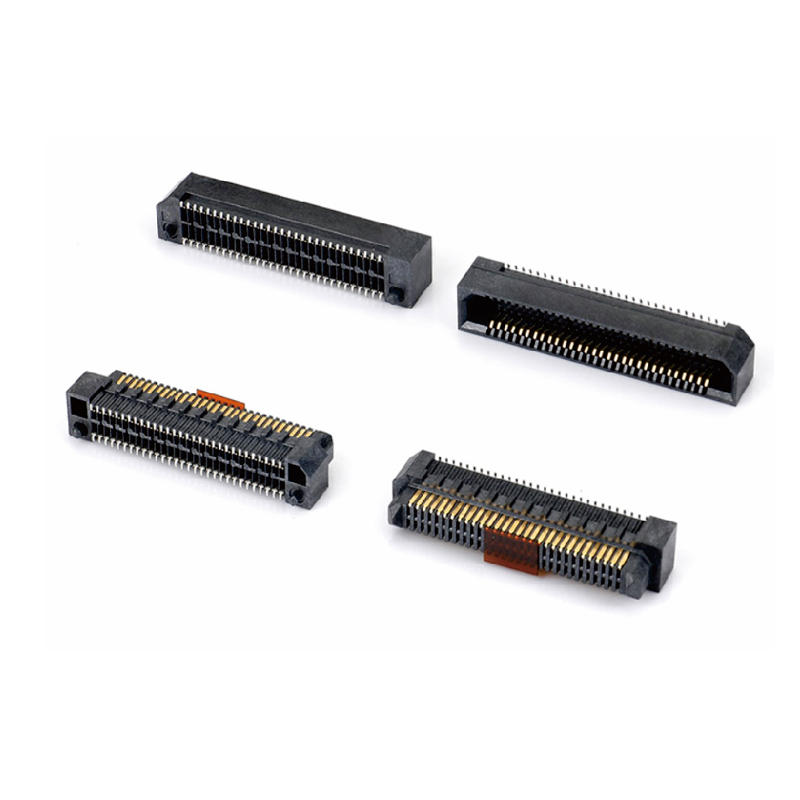

66C4 High-Speed BTB
0.80 mm high-speed signal board-to-board connector family for projects requiring signal-integrity review.

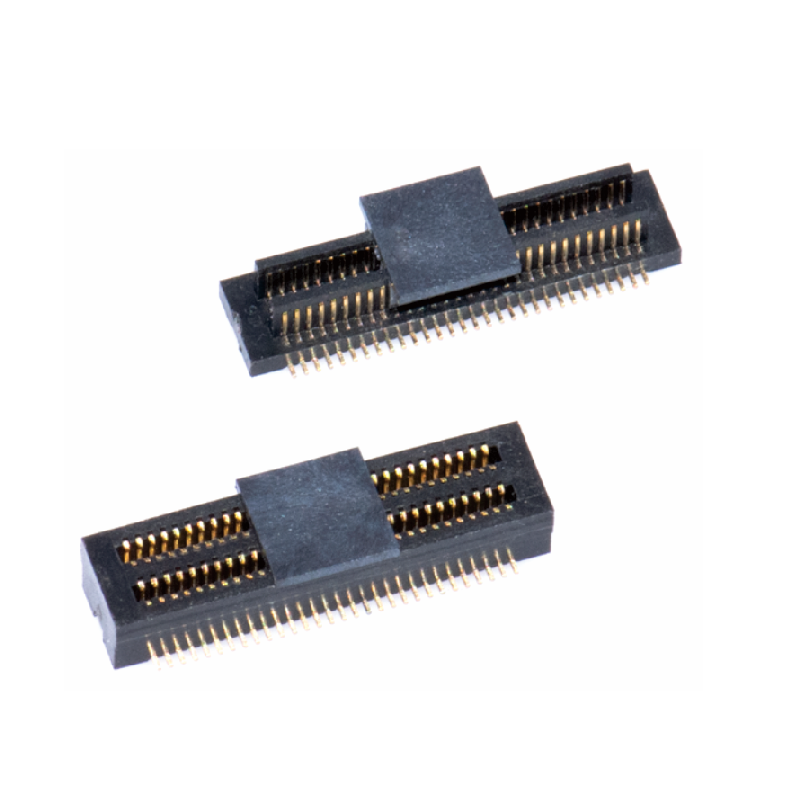

66C7 Dual-Slot BTB
0.80 mm dual-slot board-to-board connector series for compact vertical PCB interconnect designs.
66C8 Floating BTB
0.80 mm floating board-to-board connector for PCB misalignment, vibration and assembly-tolerance applications.

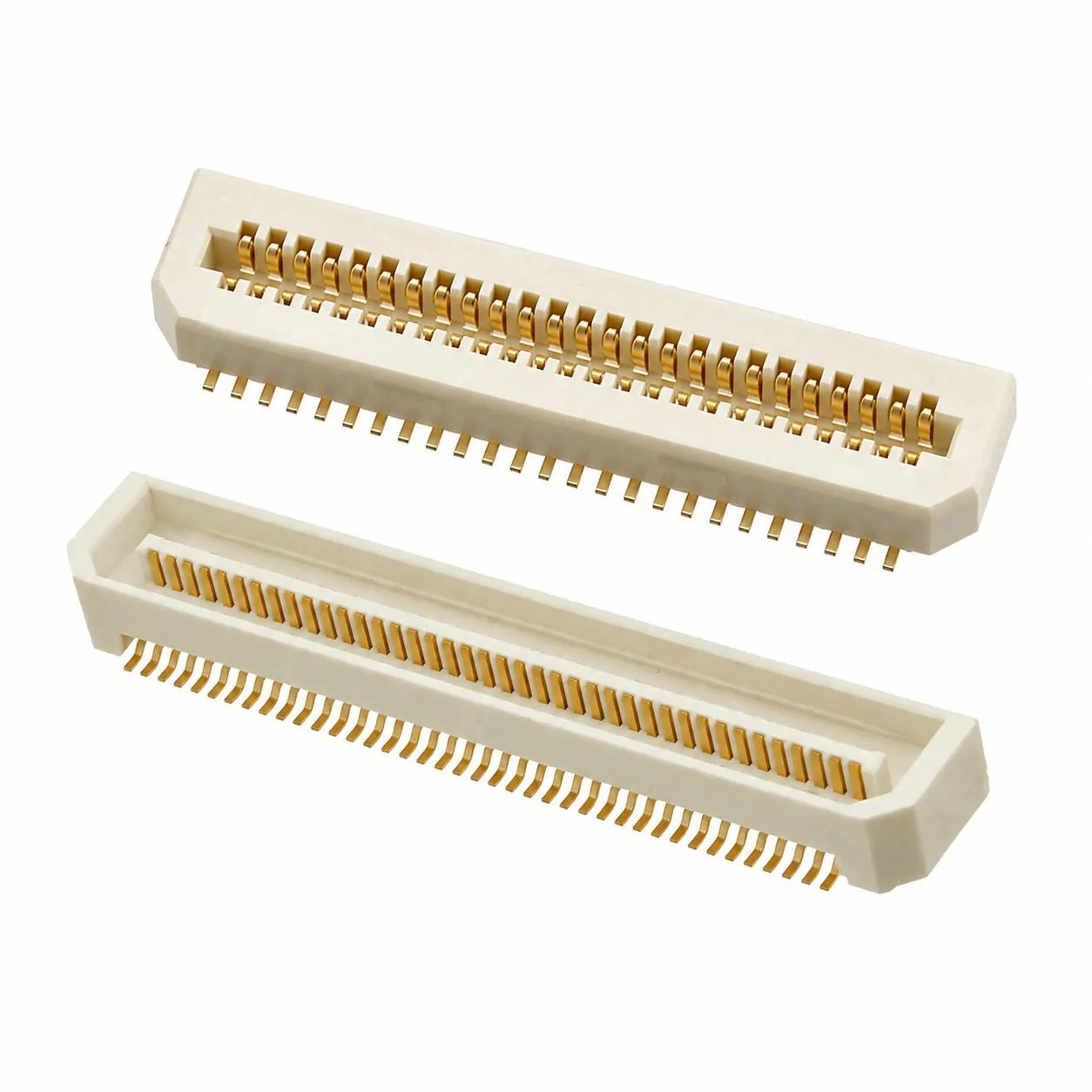

66C9 Signal BTB
0.80 mm vertical signal board-to-board connector family for compact high-density board stacking.
Custom BTB Review
Submit your required pitch, stack height, pin count, mating direction or existing part number for engineering review.
Board-Level Interconnects for Industrial and Display Electronics
Board-to-board connectors reduce internal wiring and support compact PCB module design. They are commonly used where two printed circuit boards need stable mating, controlled stack height and reliable signal or power transfer.
- LED display modules and display control boards
- Industrial control boards and automation equipment
- Communication devices and compact electronic systems
- Audio, video and stage-lighting electronic assemblies
- Power-signal hybrid PCB module designs
- Testing, measurement and high-reliability equipment
What to Provide Before Requesting Samples or a Quote
To avoid wrong connector selection, send the mechanical and electrical requirements together. A drawing, datasheet, existing part number or PCB layout screenshot can speed up the review.
Mechanical Requirements
Pitch, pin count, stack height, mating direction, PCB spacing, available board area, retention needs, insertion direction and tolerance range.
Electrical Requirements
Signal type, data rate, current path, grounding, impedance requirement, power-signal separation and whether high-speed review is needed.
Project Information
Target series, existing part number, drawing, datasheet, sample photos, expected annual volume, sample schedule and validation conditions.
From Connector Requirement to Manufacturable Product
If a standard board-to-board connector does not fully match your application, LinkManu can review custom connector feasibility based on structure, contact design, material, tooling, testing and production requirements.
Submit Requirement
Send drawings, samples, part numbers, datasheets, application conditions and expected quantity.
Engineering Review
Review pitch, stack height, mating interface, current, signal performance, tolerance and manufacturability.
Sample & Validation
Prepare engineering samples where feasible and confirm fit, function, mechanical reliability and application conditions.
Production Support
Support tooling, molding, stamping, assembly, inspection and delivery according to project scope.
Build a Complete Internal Interconnect Solution
Board-to-board connectors are often used together with floating connectors, high-speed connectors, card-edge connectors, wire-to-board connectors and cable assemblies. These links help build a clean product cluster for search engines and buyers.
Floating Board-to-Board Connectors
For PCB misalignment, vibration, blind mating and tolerance-sensitive module connection.
High-Speed Connectors
For high-speed internal signal transfer where SI review, PCB layout and mating height matter.
Card-Edge Connectors
For PCB edge interfaces, modules, industrial boards, power applications and equipment controls.
Wire-to-Board Connectors
For wire-to-PCB signal and power connection where cable-side assembly is required.
Cable Assemblies
For custom cable length, connector matching, terminal selection and harness configuration.
Connector Cross-Reference
Submit an existing connector part number, drawing or sample for alternative review.
Board-to-Board Connector FAQs
What information is needed to select a board-to-board connector?
Please provide pitch, pin count, stack height, mating direction, PCB spacing, signal or current requirements, target series or part number, expected quantity and any available drawing or datasheet.
Can LinkManu review an alternative for an existing board-to-board connector?
Yes. Send the existing part number, drawing, datasheet or sample photos. Any possible alternative should be confirmed through dimensional, electrical, mechanical and application validation before use.
When should I use a floating board-to-board connector?
Floating board-to-board connectors are useful when the design has PCB misalignment, assembly tolerance, vibration or blind-mating requirements. Send the expected tolerance range for review.
Do you support high-speed board-to-board connector projects?
Selected source series list PCIe 3.0 / 8 Gbps and PCIe 4.0 / 16 Gbps capabilities. For actual projects, the connector, PCB layout, stack height and test conditions should be reviewed together.
Can pitch, pin count or stack height be customized?
Custom connector development may be reviewed based on target volume, tooling feasibility, electrical requirements, mechanical constraints and validation needs.
Send Your Board-to-Board Connector Requirement
Share your pitch, pin count, stack height, mating direction, signal speed, current requirement, target part number, drawing or sample photo. LinkManu will review standard series, customization feasibility and quotation options.
